JP Hobby ER-150 Full Retract Landing Gear Set with Brakes For sport 2.0m

Specifications
Materials: Aluminium
Suspension: mechanical
Wheels: ball bearings mounted
For planes up to 20kg
Servo Plate with control for threaded rod and ball joints

Technical Specifications
Struts diameter: 15mm
Mounting Struts diameter: 15mm
Main gear wheels diameter: 75mm
Nose gear wheel diameter: 63mm
Wheels axle diameter: 6mm
Weight: 1360g (for the complete set including the 3 struts, 3 retracts, wheels and the controller)
Dimensions: for detailed dimensions, please refer to the pictures
Working voltage: 7.4-8.4V (2S LiPo)
Brakes working voltage: 7.2-30V

Content

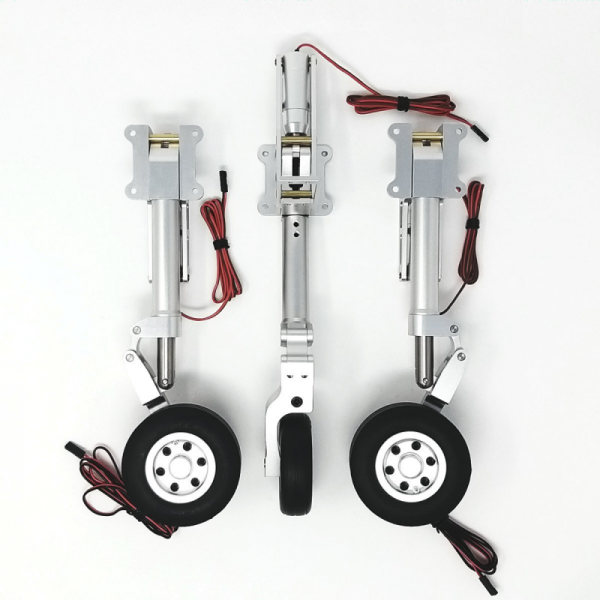

2x Scale metal struts for main landing gear equiped with 75mm wheels & brakes system
1x Scale metal strut for nose gear equiped with 63mm wheel and plate
2x Electric Retracts JP Hobby ER-150 15mm (Inside)
1x Electric Nose Retract JP Hobby ER-150 100° 15mm (Outside)
1x JP Hobby ER-150 V1

Requires
2 cells battery
Nose direction servo. Servo size for steering nose wheel : 40x 20x 37mm size with 3.8 to 8kg torque
