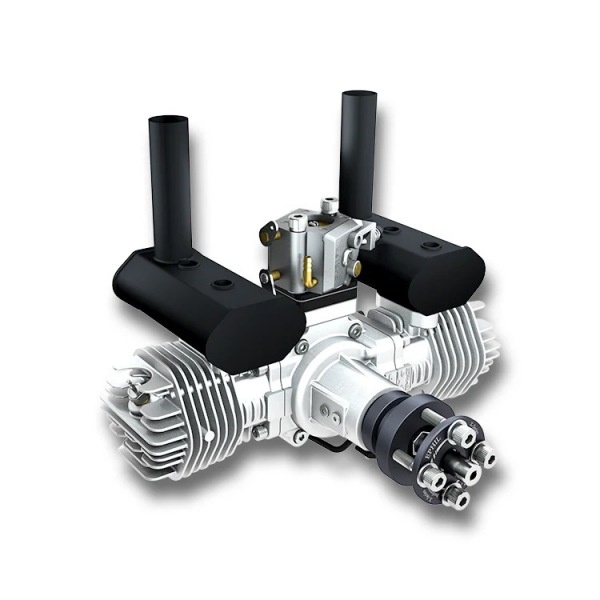

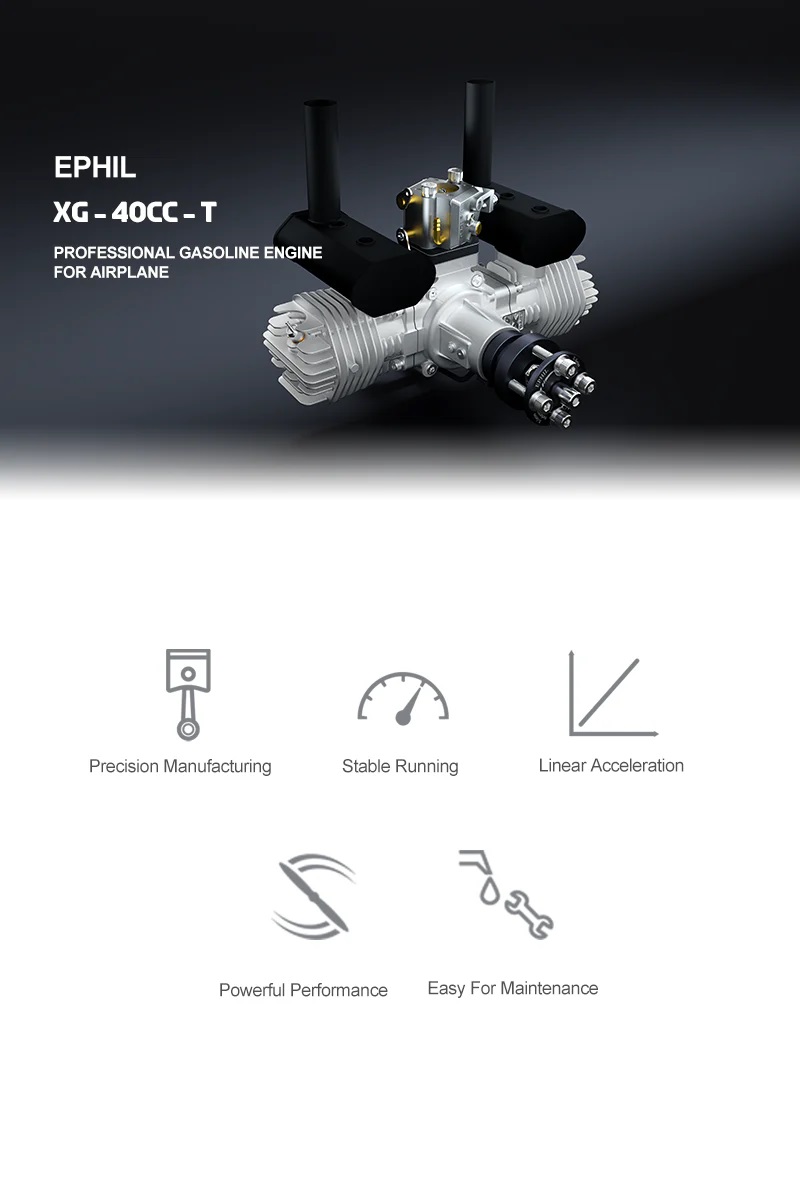

EPHIL XG-40cc-T Glow Gasoline Engine

EPHIL XG-Series 40cc-T Glow Gasoline Engine With Glow Plug & Ignition

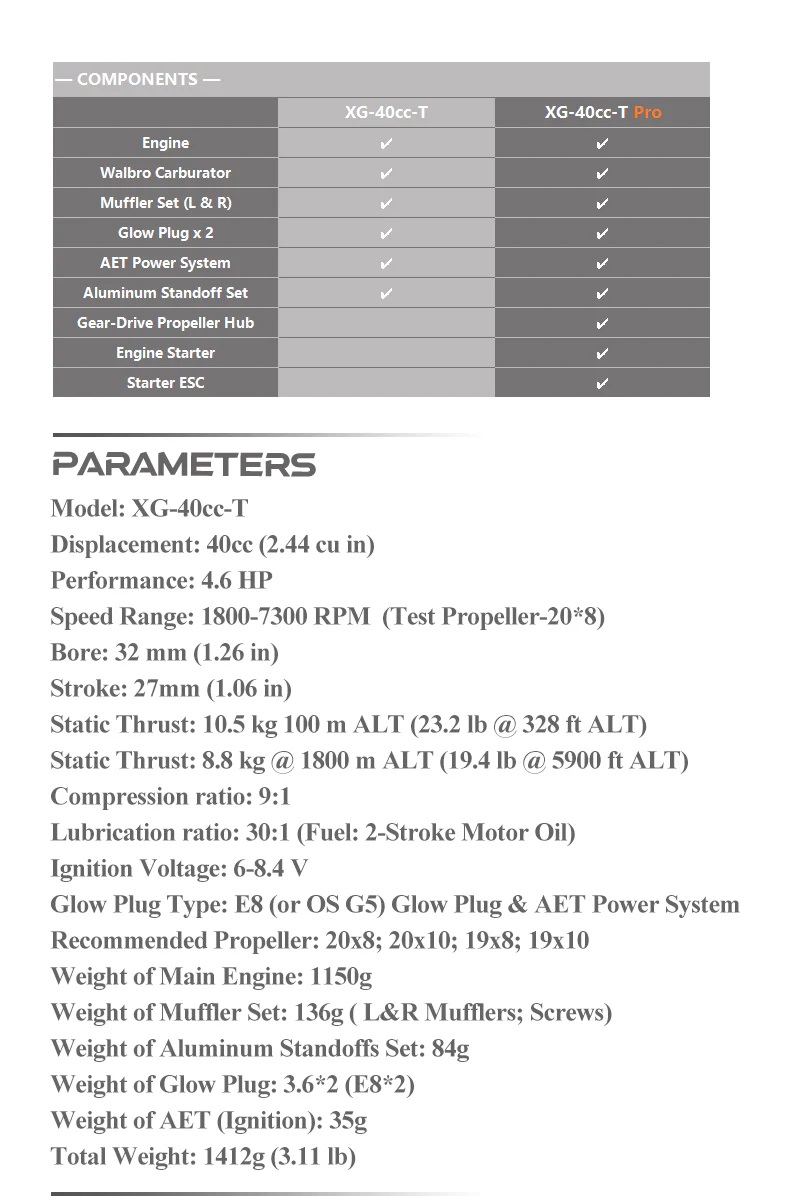

Specifications:
Model: XG-40cc-T
Displacement: 40cc (2.44 cu in)
Performance: 4.6 HP
Speed Range: 1800-8300 RPM (Test Propeller-20*8)
Bore: 32 mm (1.26 in)
Stroke: 27mm (1.06 in)
Static Thrust: 11.5 kg 100 m ALT (25.4 lb @ 328 ft ALT)
Static Thrust: 9.0 kg @ 1800 m ALT (19.8 lb @ 5900 ft ALT)
Compression ratio: 9:1
Lubrication ratio: 30:1 (Fuel: 2-Stroke Motor Oil)
Ignition Voltage: 6-8.4 V

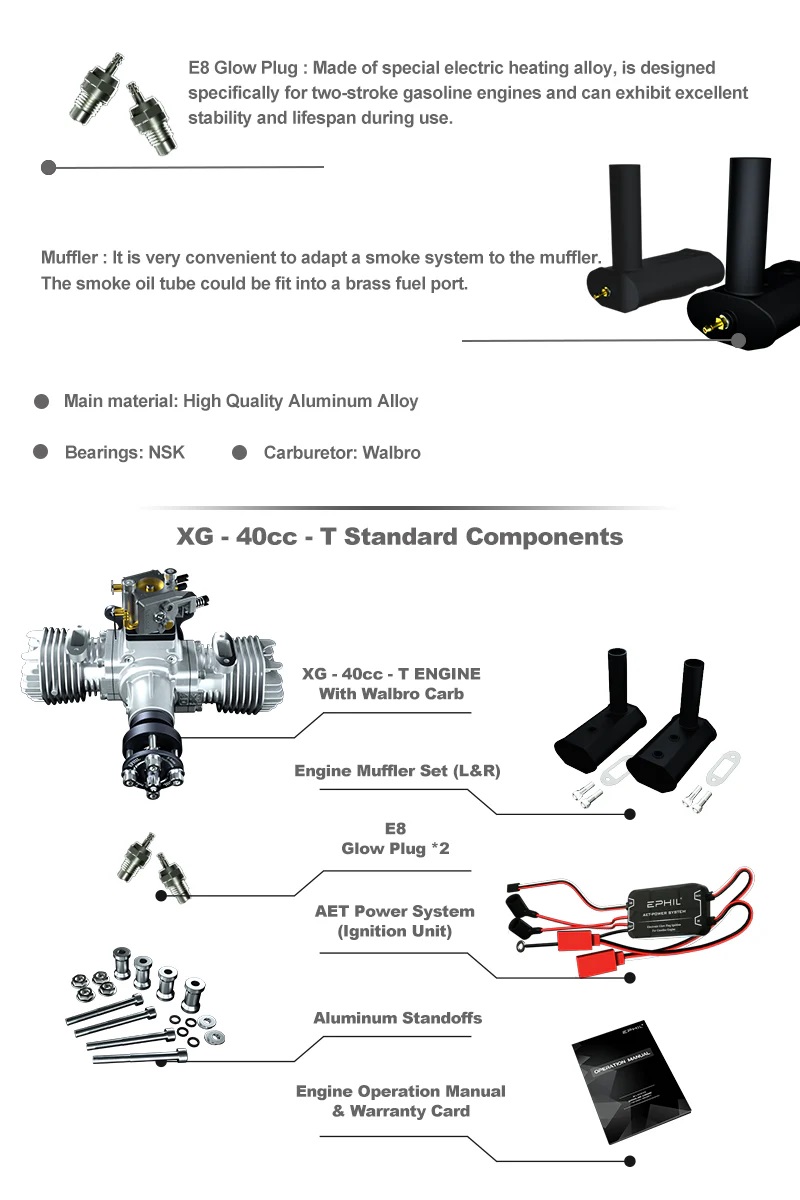

Glow Plug Type: E8 (or OS G5) Glow Plug & AET Power System
Recommended Propeller: 20x8; 20x10; 19x8; 19x10
Weight of Main Engine: 1150g
Weight of Muffler Set: 136g ( L&R Mufflers; Screws)
Weight of Aluminum Standoffs Set: 84g
Weight of Glow Plug: 3.6*2 (E8*2)

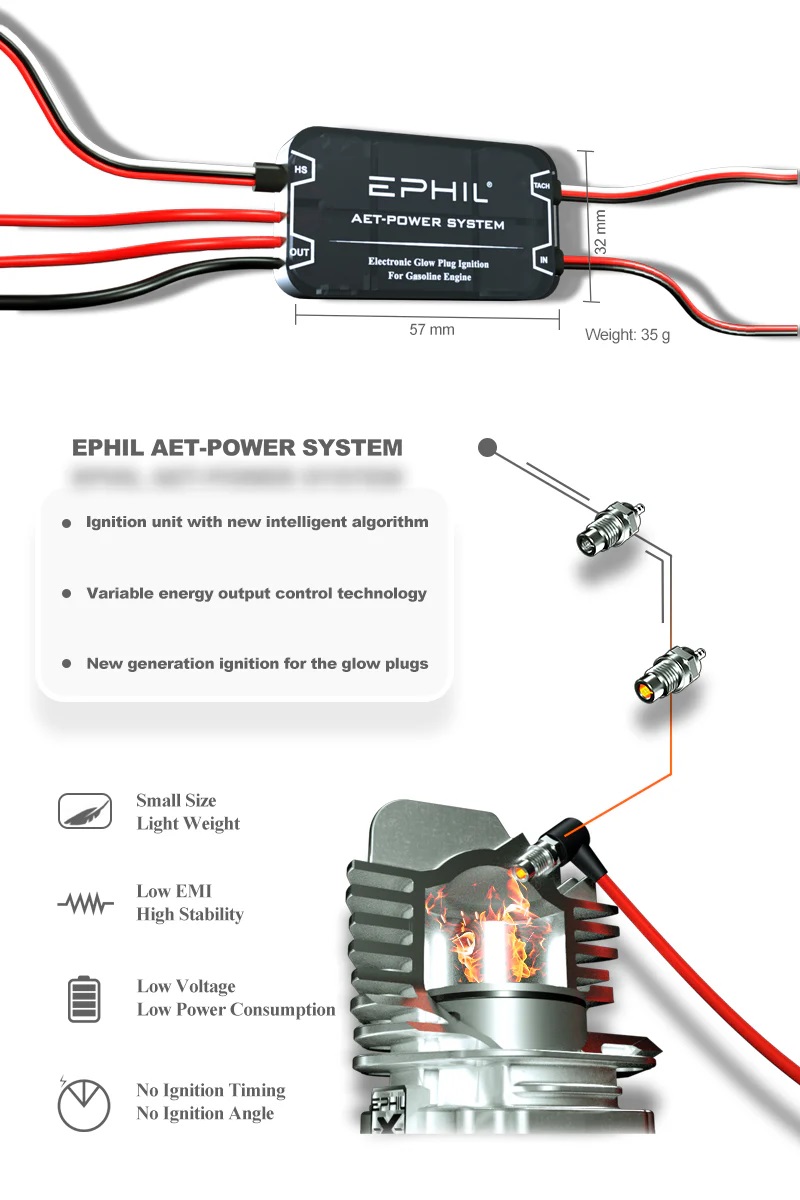

Weight of AET (Ignition): 35g
Total Weight: 1412g (3.11 lb)
